FITTING FOR OPTIMAL SITTING ABILITY AND COMFORT

Transfemoral rotator enables the knee to rotate relative to the socket in sitting posture. This function provides hip flexion adjustment, which can reduce strains caused by the socket at the residual limb. Therefore ensures prosthetic user sitting in various levels and positions comfortably.


Flexed lower leg can be swung in and out

Easy to put on shoes and socks

Seating position up to cross-legged position possible

Comfortable driving

Technical data

  • D-TKR-01
  • D-TKR-02
  • Documents

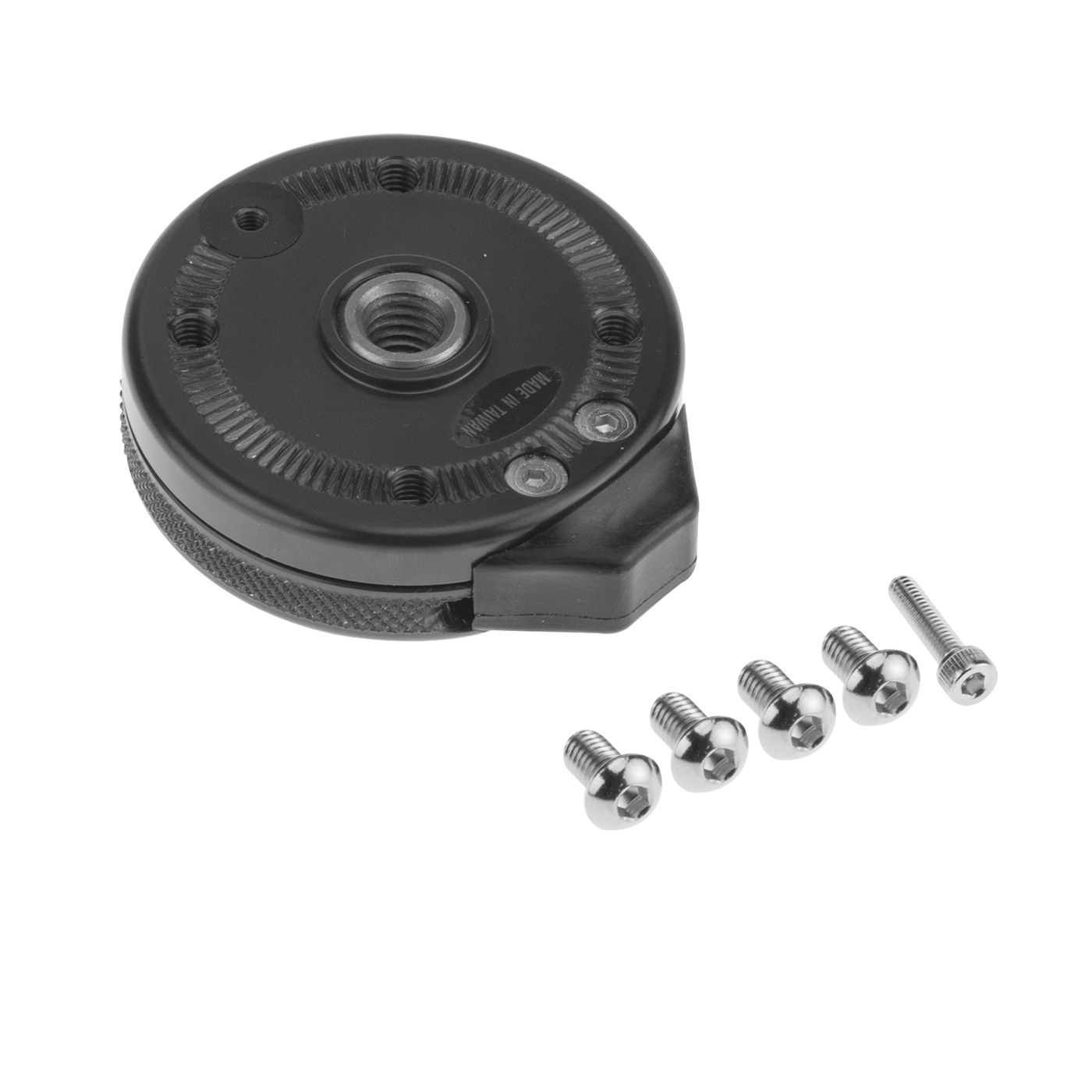

ROTATION ADAPTER

Material

Aluminum alloy

System weight

166g

Maximum rotatable angle

180°

Maximum body weight

100kg

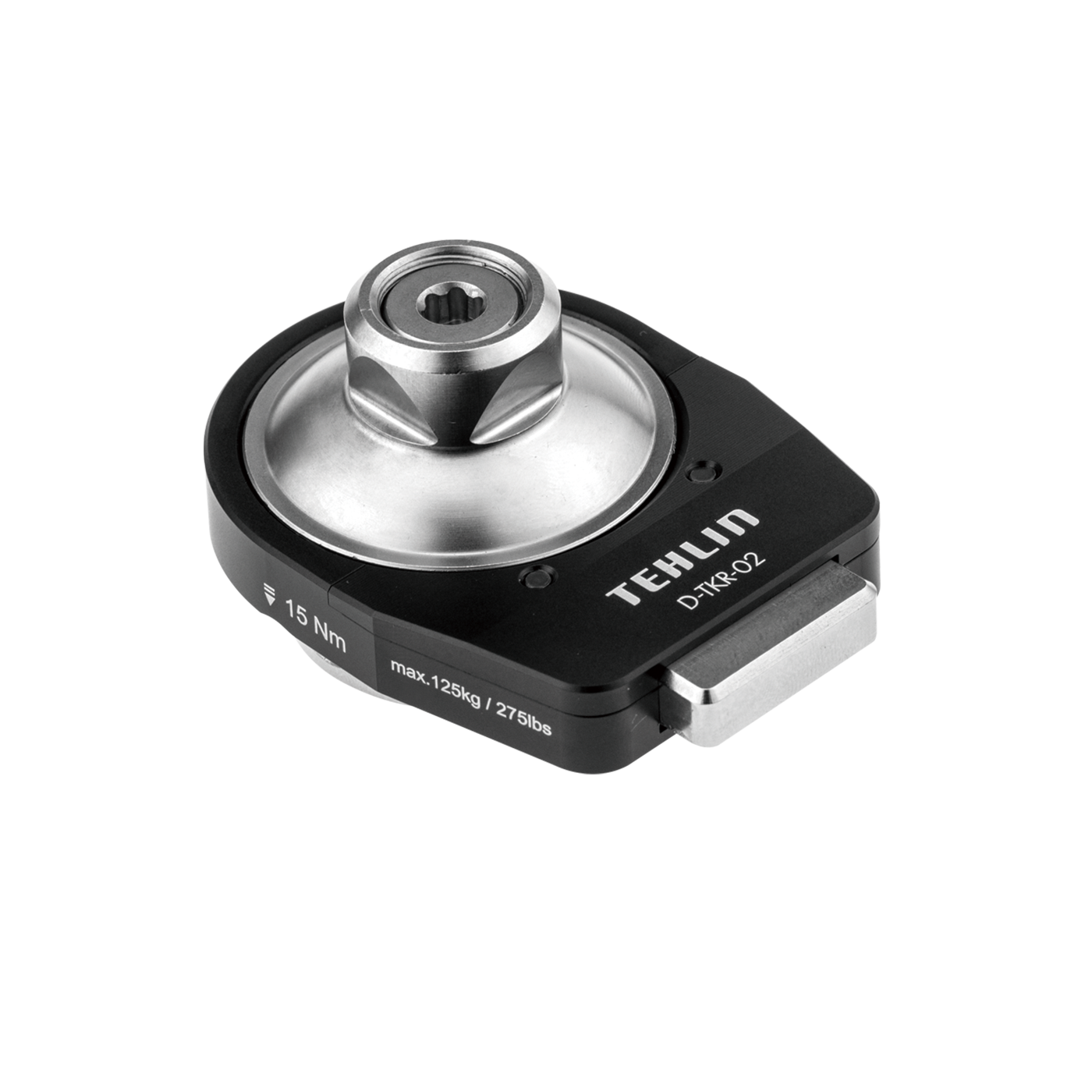

TRANSFEMORAL ROTATOR

Material

Stainless steel, Aluminum Alloy

System height

35.5mm

System weight

180g

Rotation ability

360˚(without foam cover)

Maximum body weight

125 kg
