Hy-Stan 4 Bar Knee Series


Adaptable with or without lock

Excellent stability and security

Positive locking mechanism

Adjustable extension assist for swing phase control




Technical data

  • C-TK-4000S
  • C-TK-4001S
  • C-TK-4002
  • Documents


Hy-stan 4 Bar Knee


Material

Aluminum alloy

System height

175mm

System weight

880g

Maximum flexion angle

135˚

Maximum body weight

125 kg

Proximal Connection

Threaded 4-hole
Pylon Diamete                30mm

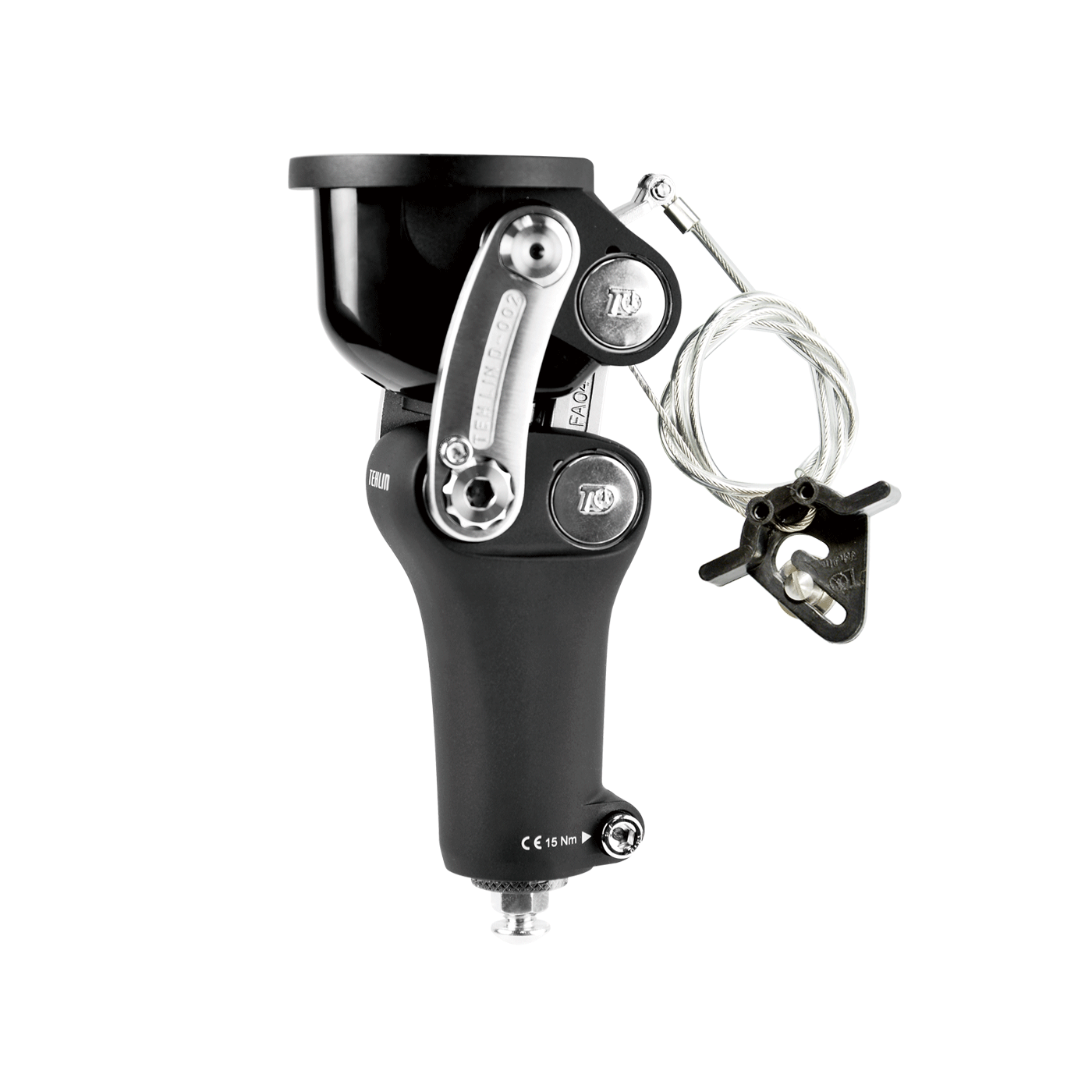

Hy-stan 4 Bar Knee With Manual Lock



Material

Aluminum alloy

System height

175mm

System weight

898g

Maximum flexion angle

120˚

Maximum body weight

125 kg

Proximal Connection

Threaded 4-hole
Pylon Diamete                30mm


Hy-stan 4 Bar Knee With 30° Manual Lock


Material

Aluminum alloy

System height

175mm

System weight

898g

Maximum flexion angle

110˚

Maximum body weight

125 kg

Proximal Connection

Threaded 4-hole
Pylon Diamete30mm


  Instructions for Use

  Tehlin product catalogue

The Hy-Stan 4 Bar Knee Series is a polycentric prosthetic knee joint. It is available in the follow­ing versions:
C-TK-4000S  (means no thread at the centro-bolt of knee head)
C-TK-4001S (means no thread at the centro-bolt of knee head. In addition, the joint has a manual locking function)
C-TK-4002 (means no thread at the centro-bolt of knee head. In addition, when the knee joint is locked, it has a flexion stop at 30∘)
